Current location:Home > Products >Thick Film Chip Resistors > Automotive Low Resistance Thick Film Chip Resistors-CS
Click to show
Series | Product Name | Photo | Power | Specifications | Temperature coefficient | Precision | Resistance segment | Specifications | Details |
---|---|---|---|---|---|---|---|---|---|

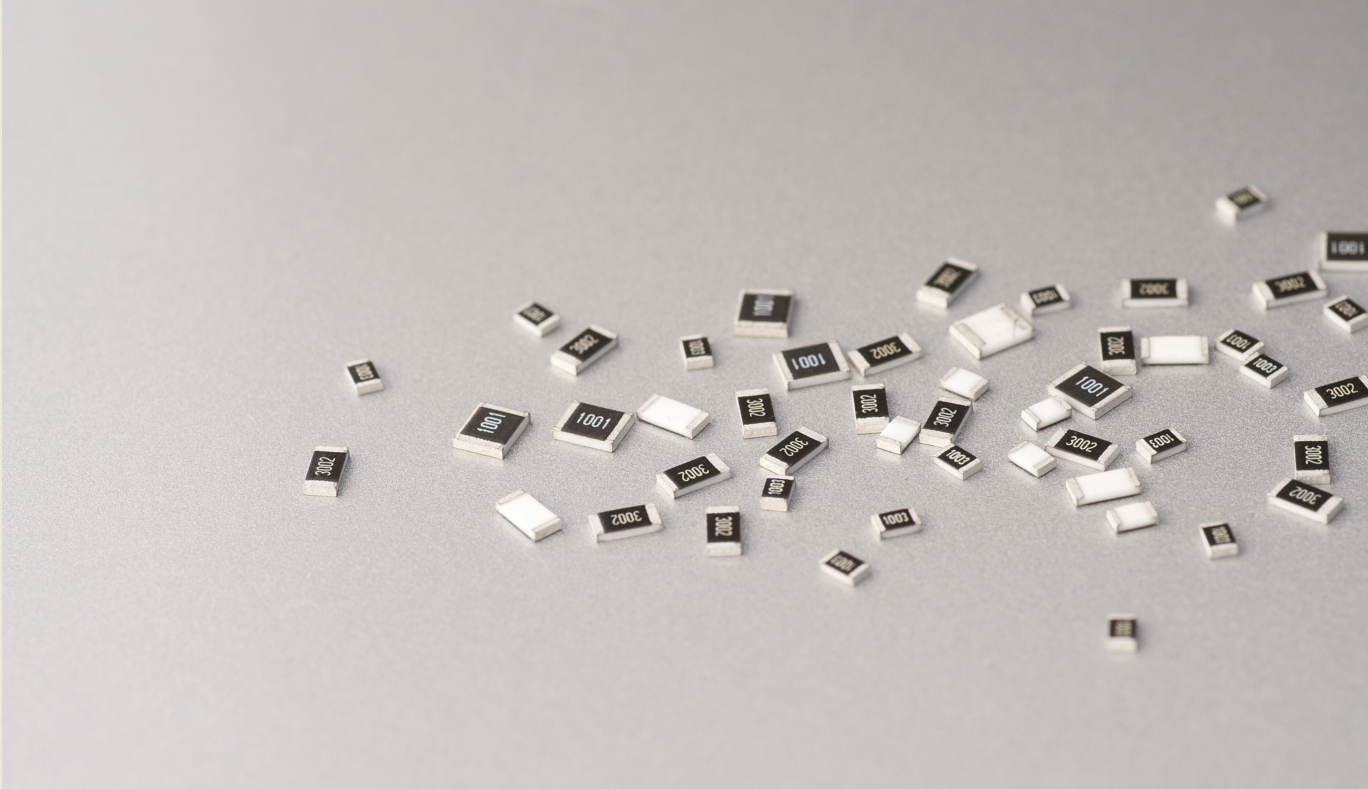

CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1W | CS12 | ±100ppm/℃ | ±1% ±5% | 0.1Ω<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1W | CS12 | ±150ppm/℃ | ±1% ±5% | 50mΩ<R≤0.1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1W | CS12 | ±200ppm/℃ | ±1% ±5% | 33mΩ<R≤50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1W | CS12 | ±300ppm/℃ | ±1% ±5% | 20mΩ≤R≤30mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1W | CS12 | ±400ppm/℃ | ±1% ±5% | 15mΩ≤R<20mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1W | CS12 | ±600ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS11 | ±100ppm/℃ | ±1% ±5% | 0.1Ω<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS11 | ±200ppm/℃ | ±1% ±5% | 50mΩ≤R≤0.1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS11 | ±400ppm/℃ | ±1% ±5% | 20mΩ≤R<50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS11 | ±500ppm/℃ | ±1% ±5% | 10mΩ≤R<20mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS10 | ±100ppm/℃ | ±1% ±5% | 0.1Ω<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS10 | ±150ppm/℃ | ±1% ±5% | 50mΩ<R≤0.1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS10 | ±200ppm/℃ | ±1% ±5% | 33mΩ<R≤50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS10 | ±300ppm/℃ | ±1% ±5% | 20mΩ≤R≤30mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS10 | ±500ppm/℃ | ±1% ±5% | 15mΩ≤R<20mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
3/4W | CS10 | ±600ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/2W | CS07 | ±100ppm/℃ | ±1% ±5% | 50mΩ<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/2W | CS07 | ±300ppm/℃ | ±1% ±5% | 20mΩ≤R≤50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/2W | CS07 | ±400ppm/℃ | ±1% ±5% | 15mΩ≤R<20mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/2W | CS07 | ±500ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/3W | CS06 | ±150ppm/℃ | ±1% ±5% | 0.1Ω<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/3W | CS06 | ±200ppm/℃ | ±1% ±5% | 50mΩ<R≤0.1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/3W | CS06 | ±300ppm/℃ | ±1% ±5% | 30mΩ<R≤50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/3W | CS06 | ±400ppm/℃ | ±1% ±5% | 15mΩ≤R≤30mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/3W | CS06 | ±700ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/4W | CS05 | ±100ppm/℃ | ±1% ±5% | 0.2Ω<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/4W | CS05 | ±200ppm/℃ | ±1% ±5% | 50mΩ<R≤0.2Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/4W | CS05 | ±400ppm/℃ | ±1% ±5% | 25mΩ<R≤50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/4W | CS05 | ±600ppm/℃ | ±1% ±5% | 15mΩ<R≤25mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/4W | CS05 | ±800ppm/℃ | ±1% ±5% | 10mΩ≤R≤15mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±200ppm/℃ | ±1% ±5% | 0.1Ω<R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±300ppm/℃ | ±1% ±5% | 50mΩ<R≤0.1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±400ppm/℃ | ±1% ±5% | 33mΩ≤R≤50mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±600ppm/℃ | ±1% ±5% | 30mΩ≤R<33mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±800ppm/℃ | ±1% ±5% | 20mΩ≤R≤30mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±1000ppm/℃ | ±1% ±5% | 15mΩ≤R<20mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/5W | CS03 | ±1500ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/8W | CS02 | ±200ppm/℃ | ±1% ±5% | 100mΩ≤R≤1Ω | ![]() File size:616.02 KB |
Details |
CS | Automotive Low Resistance Thick Film Chip Resistors | ![]() |
1/8W | CS02 | ±700ppm/℃ | ±1% ±5% | 50mΩ≤R<100mΩ | ![]() File size:616.02 KB |
Details |
